YA(YK) Shaker For Glass & Ceramics Industry

Product Introduction

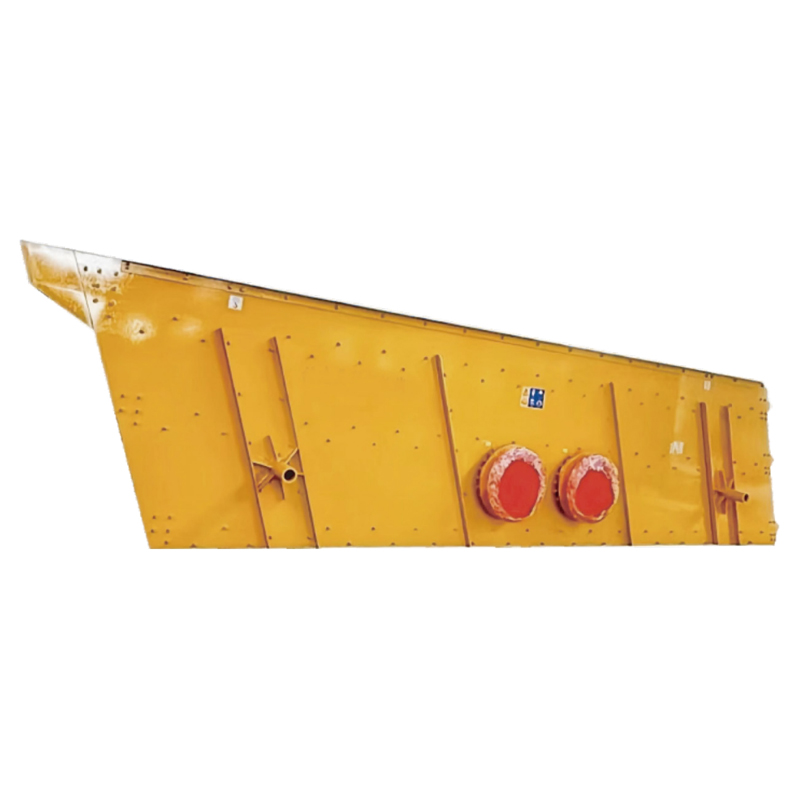

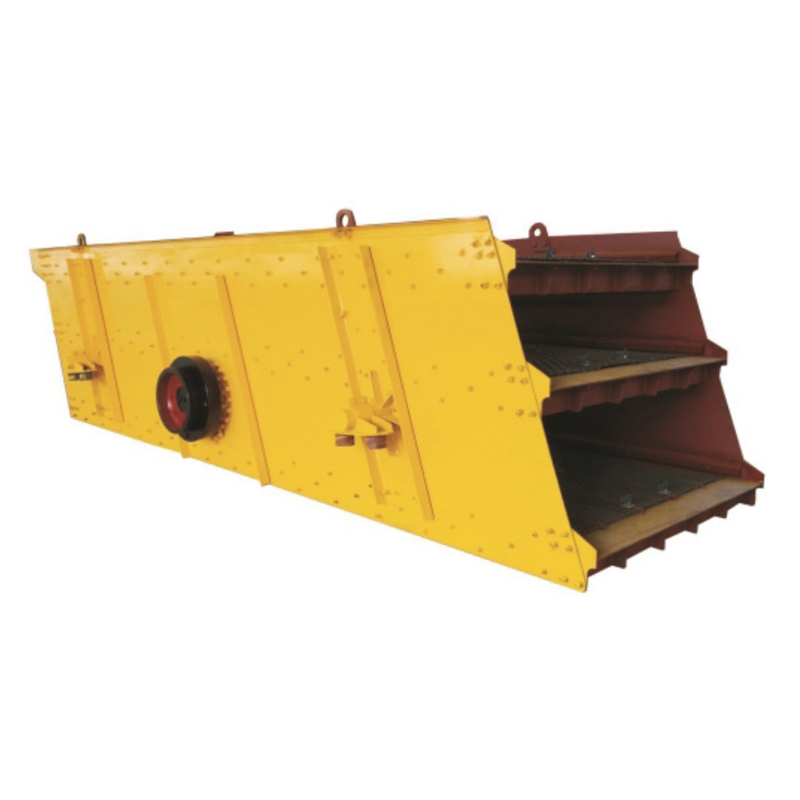

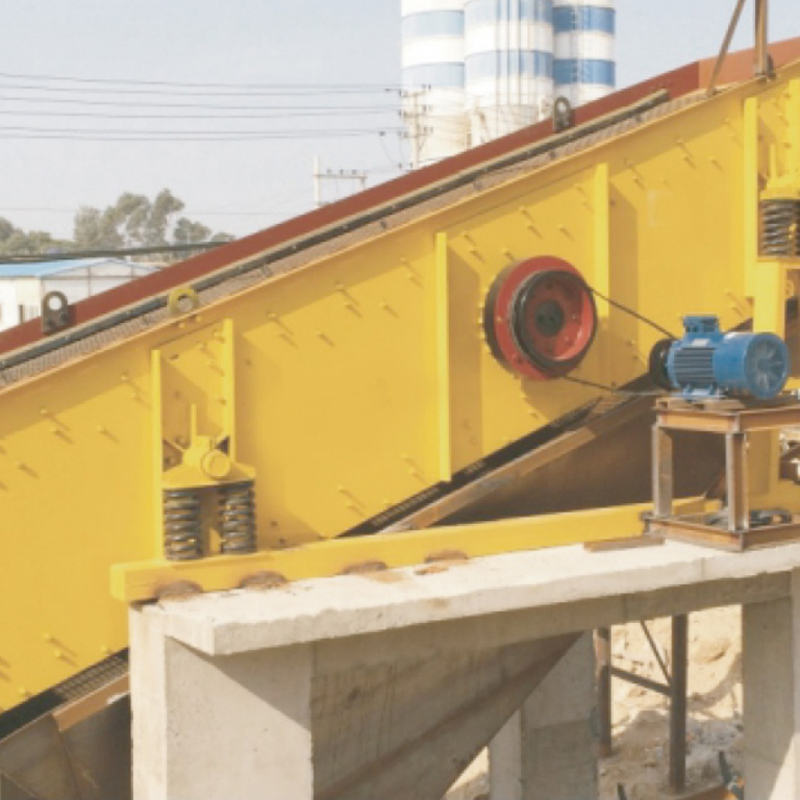

Ya (YK) inclined vibrating screen is manufactured with a strong structure and designed to be inclined at 15-20 degrees. It is simple in design and is especially suitable for screening coarse stone or ore. The transmission shaft is equipped with an eccentric block to produce regular vibration, the user can adjustthe counterweight of the eccentric block to meet its requirements. This machine has15-20 degrees of Tilt, plus the role of gravity, so compared with the horizontal vibrating screen needs less driving force, but can produce a strong screening effect.

    Request for Quotation
    product details

    Product features

    1. screen beam and screen box with high strength bolt connection, simple structure, convenient maintenance. Ring groove rivet connection, durable, using tire coupling, flexible connection, smooth running;
    2. excellent material spindle, bearing and advanced design of oil bath lubrication to ensure the stable production of vibrating screen, get rid of other manufacturers of screening equipment frequently replace the bearing embarrassment;
    3. the strong and stable exciting force ensures that it has a good passing ability at a low installation Angle, while the small inclination Angle ensures that the screening time is sufficient on the same screening area and has a high screening efficiency.
    Compared with the exciting force of 3~3.5G domestic screening machine, The YK vibrating screen makes it easier to fully disperse the material in a short time to improve the overall screening effect.

    Main technical parameters

    Model SieveLayer SieveAreaW×L(mm) Max.FeedSize(mm) Throughput(t/h) Amplitudel(mm) MotoPower(kW) Weight(t) Dimension(LxW×H)(mm)
    1YA-1230 1 1200×3000 200 15-40 7-10 5.5 2.8 3450×1850×890
    2YA-1230 2 1200×3000 200 15-45 7-10 7.5 3.2 3450×1850×960
    3YA-1230 3 1200×3000 200 15-50 7-10 11 3.7 3650×1850×1280
    2YA-1545 2 1500×4500 200 25-60 8-11 11 4.3 5400×2150×1060
    3YA-1545 3 1500×4500 200 25-70 8-11 15 5.5 5550×2150×1480
    2YA-1548 2 1500×4800 200 30-80 13-16 15 5.2 5806×2200×1100
    3YA-1548 3 1500×4800 200 30-90 13-16 15 6.2 5906×2200×1480
    2YA-1850 2 1800×5000 250 50-120 8-11 18.5 5.7 6080×2450×1280
    3YA-1850 3 1800×5000 250 50-140 8-11 18.5 6.5 6250×2450×1780
    2YA-1854 2 1800×5400 250 50-160 8-12 18.5 6.5 6509×2536×1590
    3YA-1854 3 1800×5400 250 50-200 8-12 22 7.8 6509×2536×1880
    4YA-1854 4 1800×5400 250 50-220 8-12 22 8.8 6509×2536×1880
    2YA-2060 2 2000×6000 250 80-180 8-12 22 6.6 7070×2650×1340
    3YA-2060 3 2000×6000 250 80-210 8-12 22 7.7 7250×2650×1780
    2YA-2160 2 2100×6000 250 100-250 8-12 22 7.4 7150×2670×1480
    3YA-2160 3 2100×6000 250 100-280 8-12 30 8.6 7250×2670×1780
    4YA-2160 4 2100×6000 250 100-320 8-12 37 10.2 7250×2670×1880
    2YA-2460 2 2400×6000 300 150-600 9-13 30 9.7 7150×2900×1590
    3YA-2460 3 2400×6000 300 150-600 9-13 30 11.9 7150×2900×1880
    2YA-2270 2 2200×7000 280 120-250 8-12 30 8.4 8100×2850×1340
    3YA-2270 3 2200×7000 280 120-300 8-12 30 9.9 8250×2850×1780
    2YA-2470 2 2400×7000 300 160-400 8-12 30 10.5 8100×3050×1340
    3YA-2470 3 2400×7000 300 160-480 8-12 37 11.8 8250×3050×1780
    2YA-3072 2 3000×7000 320 200-600 8-12 22×2 16.5 8250×3750×1480
    3YA-3072 3 3000×7000 320 250-650 8-12 30×2 18 8250×3750×1780
    4YA-3072 4 3000×7000 320 250-700 8-12 30×2 21 8350×3750×1980
    2YA-3675 2 3600×7500 320 280-600 8-12 37×2 22 8350×4350×1500
    3YA-3675 3 3600×7500 320 300-700 8-12 45×2 26 8550×4350×200
    2YA-3080 2 3000×8000 320 250-700 8-12 37×2 19 9100×3750×1500
    3YA-3080 3 3000×8000 320 250-700 8-12 45×2 22 9100×3750×2000
