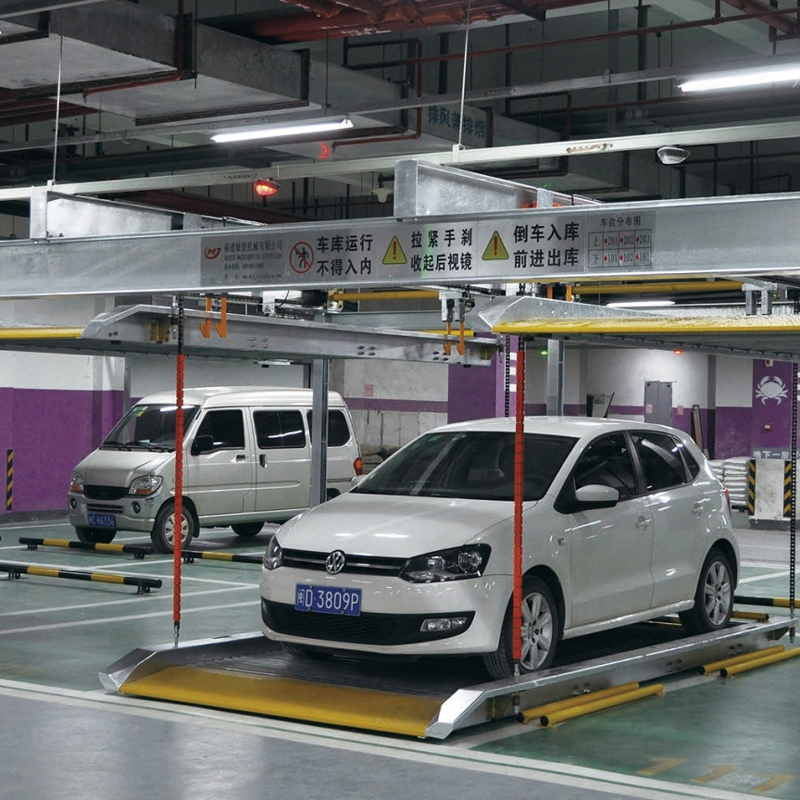

Two-Story Simple Lifting Stereo Garage

Working principle:
When parking a car, the vehicle drives into the upper parking space, and after the upper parking space rises, another vehicle drives into the lower parking space; when picking up a car, the vehicle in the lower parking space drives out first, the upper parking space drops to the ground, and the upper vehicle drives out of the equipment.

    Request for Quotation
    product details

    Technical features of the equipment

    Based on the original parking space, the number of parking spaces is doubled: stable operation, low noise, simple operation, safe and reliable;

    Design parameters

    Model

    Second-floor simple lift

    Vehicle dimensions (L×W×H)

    5000mm×1850mm×1750/1550mm

    Vehicle weight

    ≤2350kg

    Drive mode

    Motor chain drive

    Motor

    Lifting: 2.2kw

    Power supply

    Three-phase five-wire 380V/50HZ

    Speed

    Lifting: 4.2m/min

    Control

    PLC logic automatic control

    Operation

    Button, IC card operation

    Safety device

    		 ● Warning device during operation ●Anti-fall device
    ● Emergency stop device ●Up and down limit protection device
    ● Current overload protection ●Up and down positioning switch
    ● Photoelectric detection device at the entrance ●Power-off brake device
    ● Wheel stopper ●Safety interlock device
    ● Chain protection cover ●Excess length detection

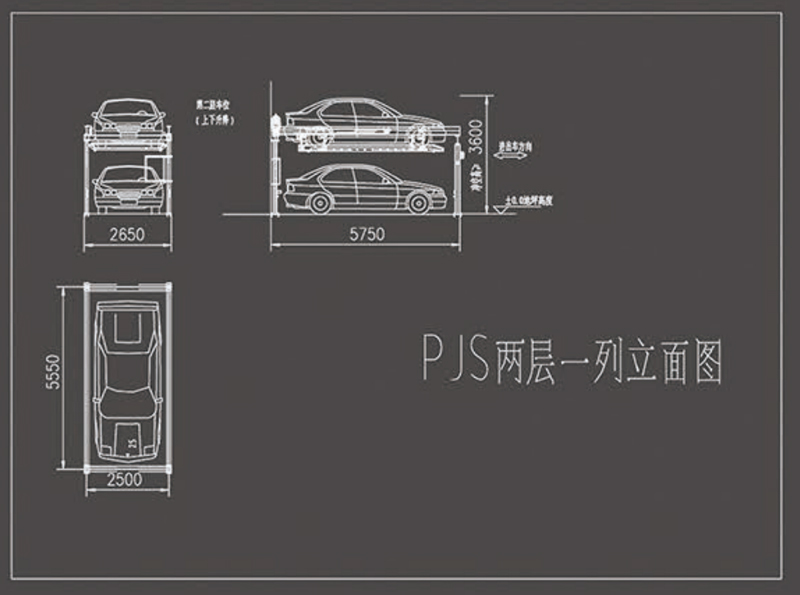

    • product-description1

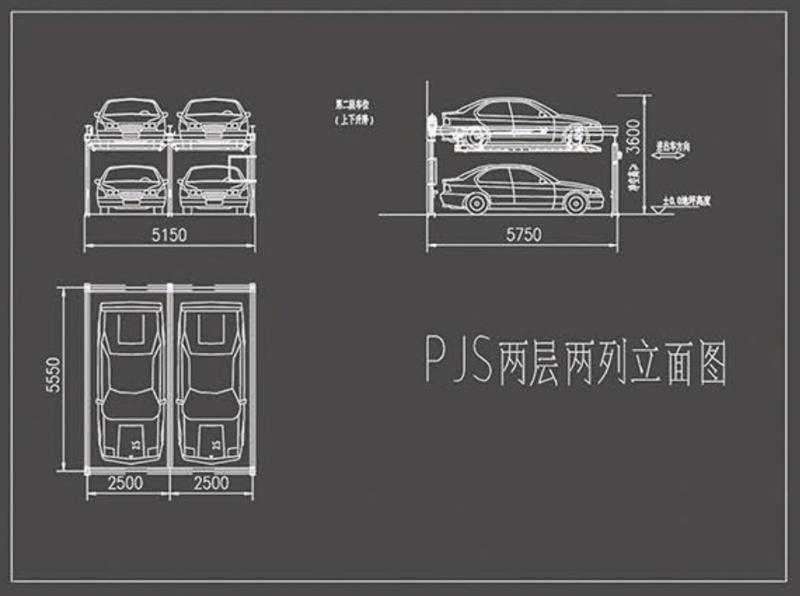

    • product-description2

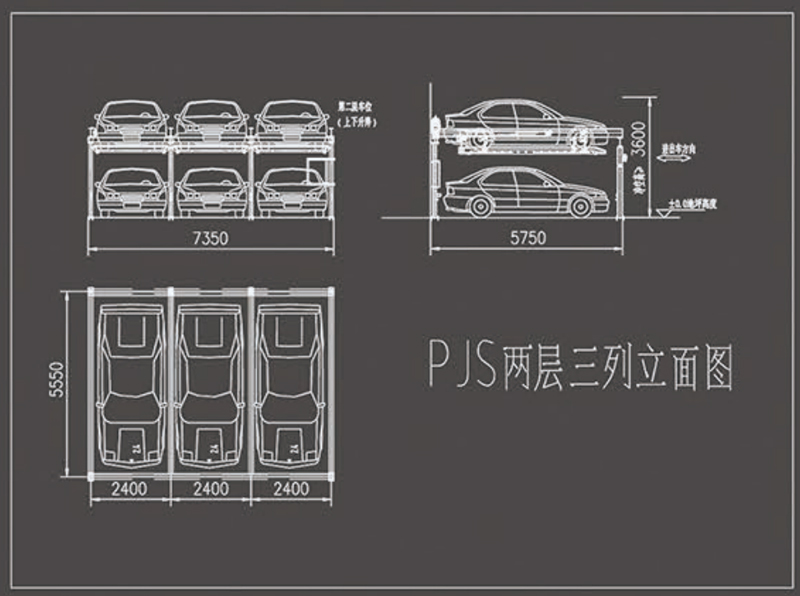

    • product-description3

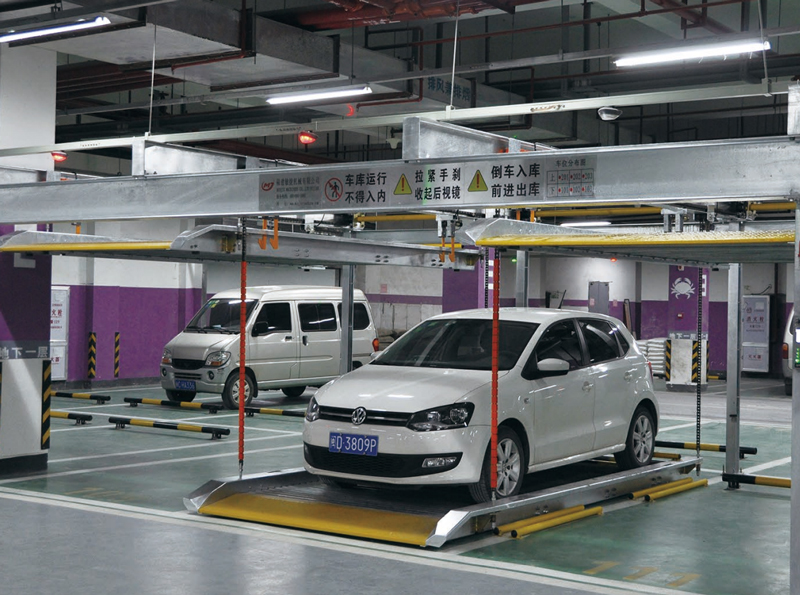

    • product-description4

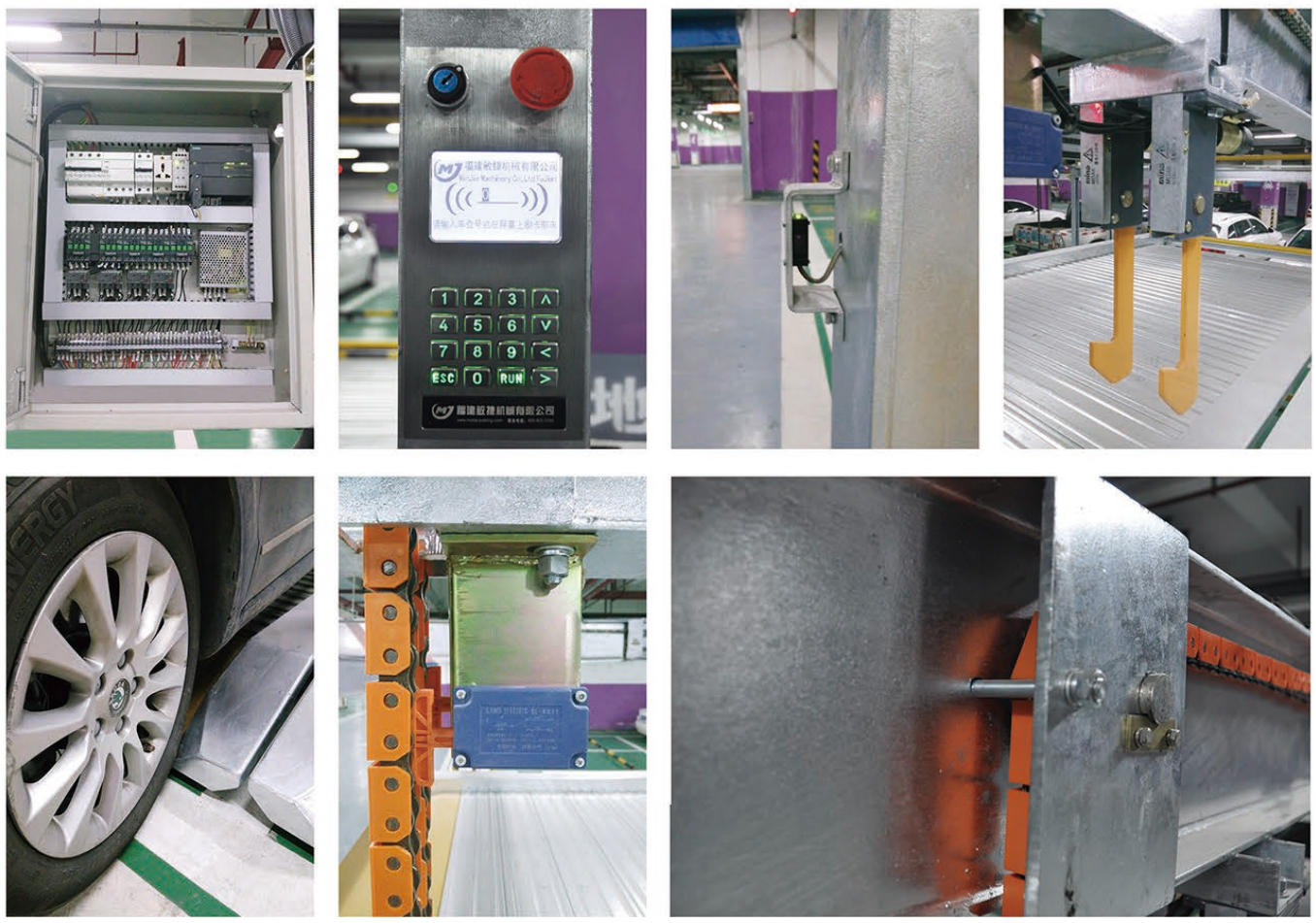

    product-description5
