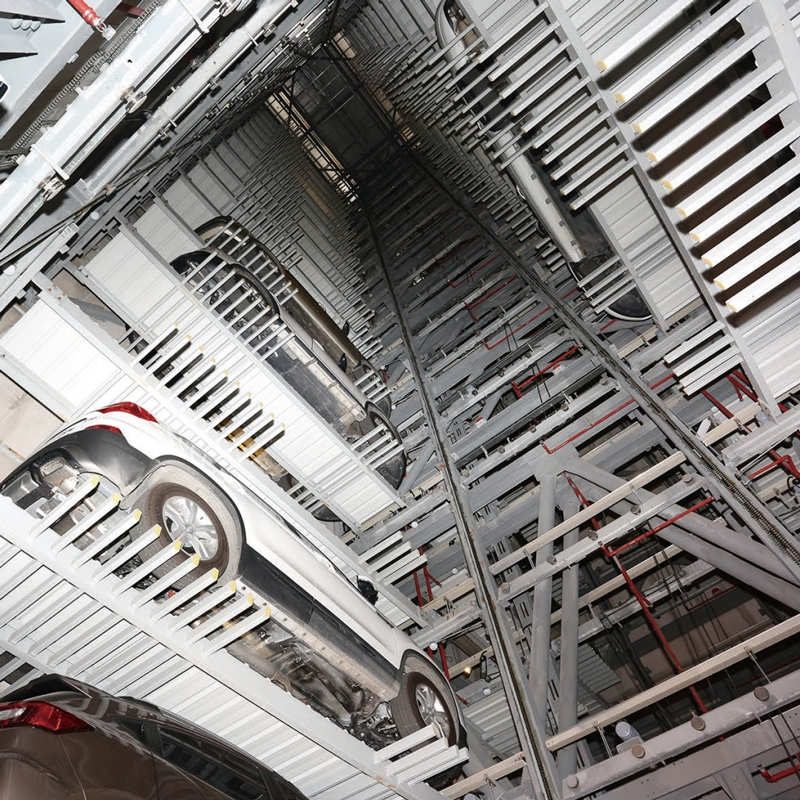

Tower-Style Vertical Lift Parking Garage

Working principle:

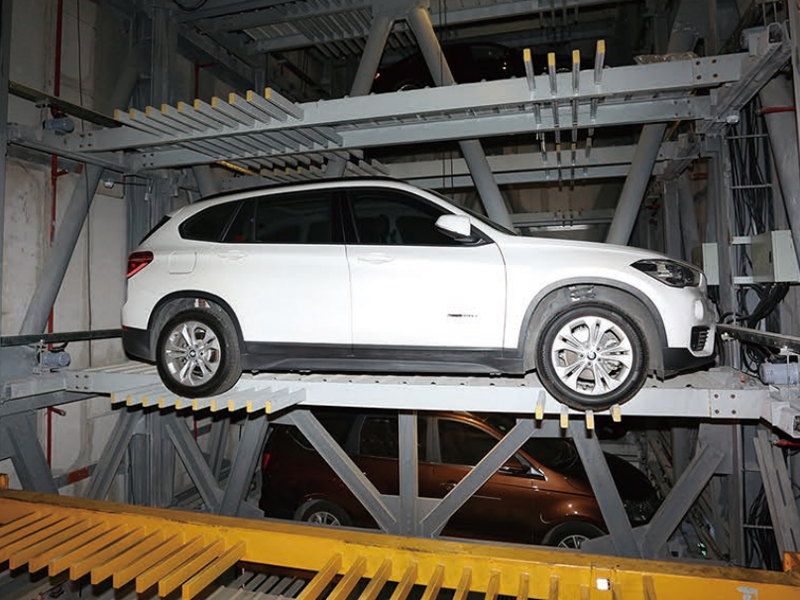

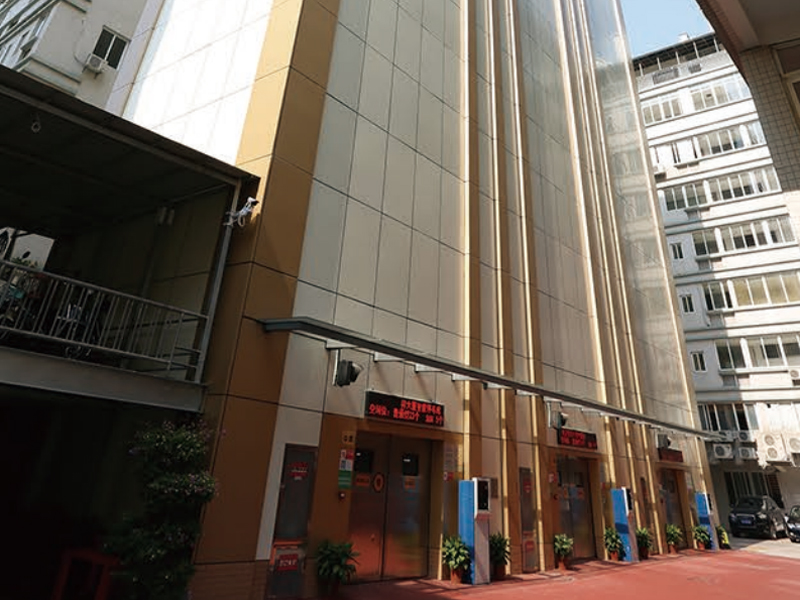

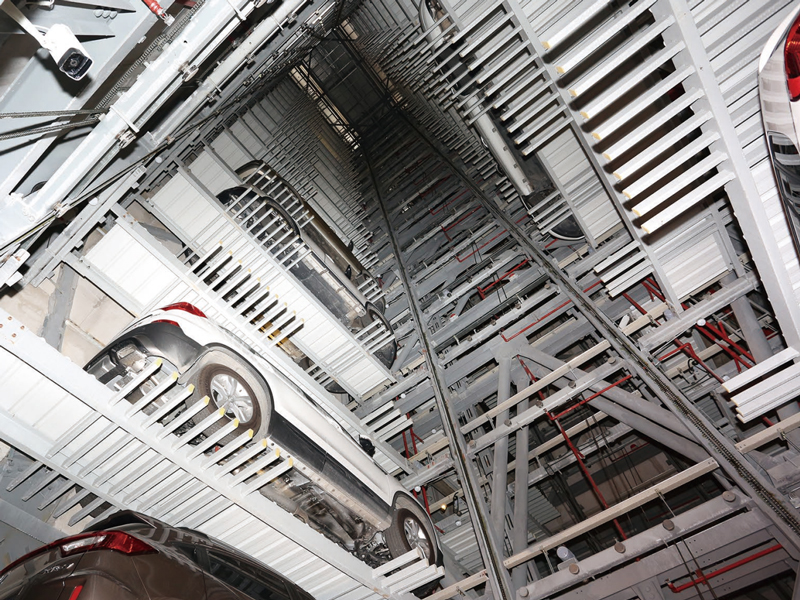

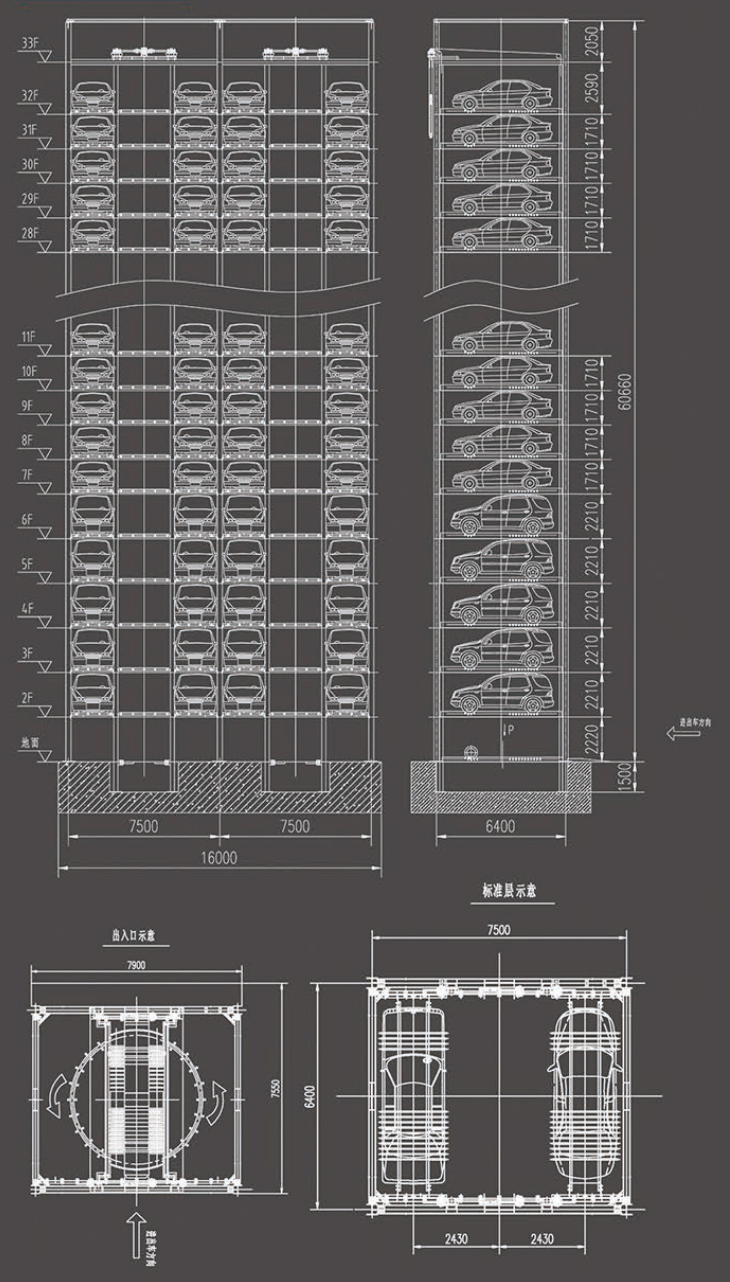

The equipment adopts a fully enclosed tower design with a high degree of automation. Its operating principle is that there is a lifting channel in the middle of the garage, and parking spaces are set in the horizontal direction on both sides. Each parking space has a loading plate, which can move horizontally and the vehicle is parked on the loading plate. A lifting mechanism is set in the channel, and the vehicle or the loading plate is lifted to the specified layer by the lifting mechanism, and then the vehicle or the loading plate is sent into or out of the parking space by the device installed on the hoist, so as to achieve the purpose of three-dimensional storage and retrieval of the vehicle. The lifting mechanism is lowered to the vehicle entrance and exit, and the rotating platform turns the vehicle around by rotating to ensure that the front of the vehicle faces outward, and then the garage door is automatically opened, and the driver enters the garage to drive the vehicle away.
