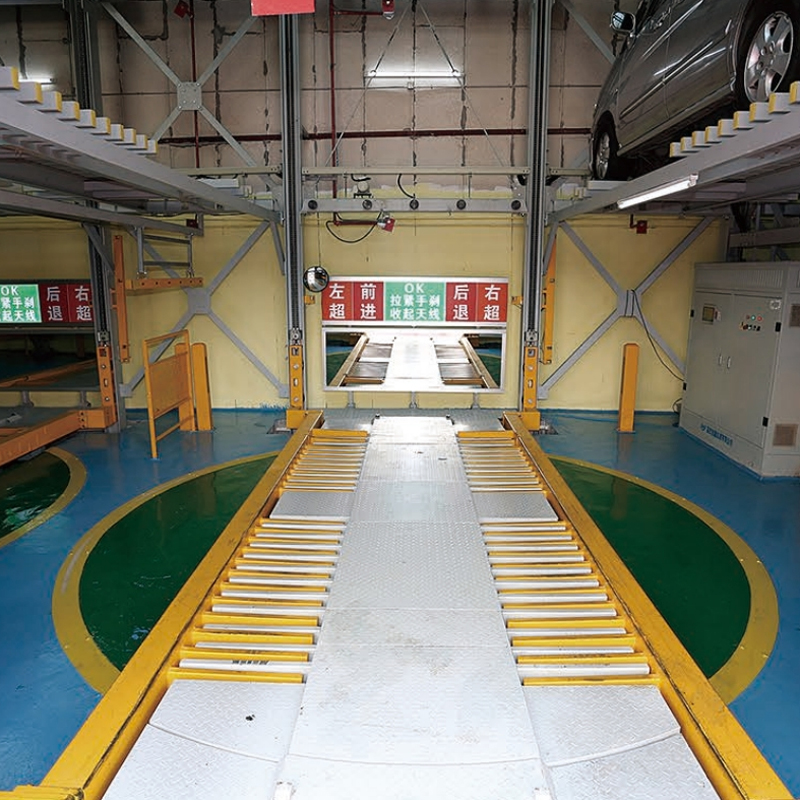

Tower-Style Lifting And Horizontal Moving Stereo Garage
Technical features of the equipment
◆Small footprint, high performance, energy saving, relatively low noise
High-speed intelligent access, low environmental impact;

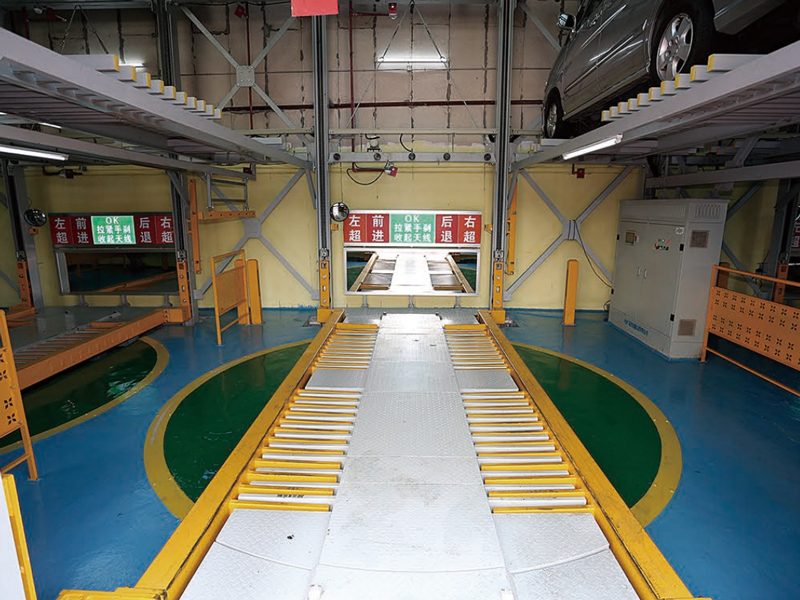

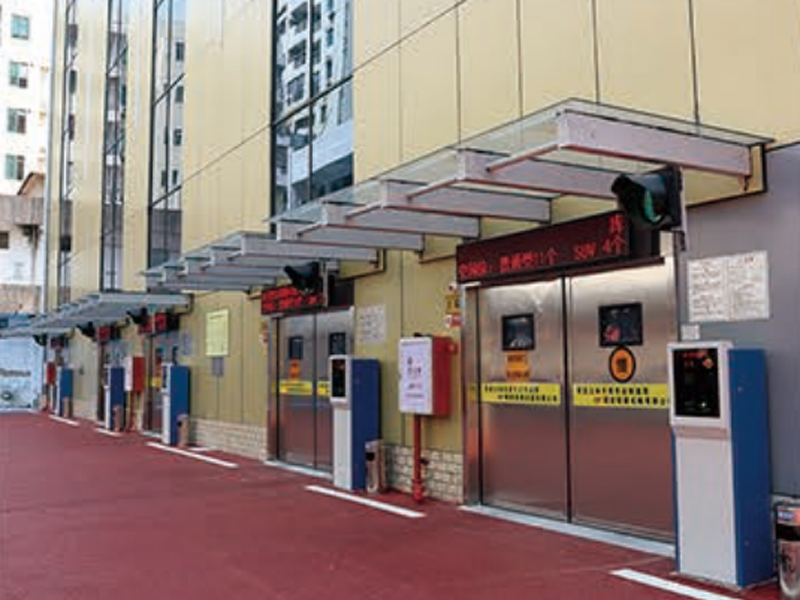

◆Fully enclosed management, safe, anti-theft, providing the best protection for vehicles
Protection:
◆High-speed operation, fast entry and exit, front entry and exit;
◆Automatically identify large and small vehicles and automatically allocate vehicles to large and small parking spaces;
◆Automatically identify large and small vehicles and automatically allocate vehicles to large and small parking spaces;
◆Adopting variable frequency speed regulation technology, fast operation speed, up to 90m/min to 120m/min, stable operation, high safety, car retrieval time of 50S~90S, simple operation and easy maintenance. ;
◆Simple operation, easy maintenance\complete and reliable safety devices;

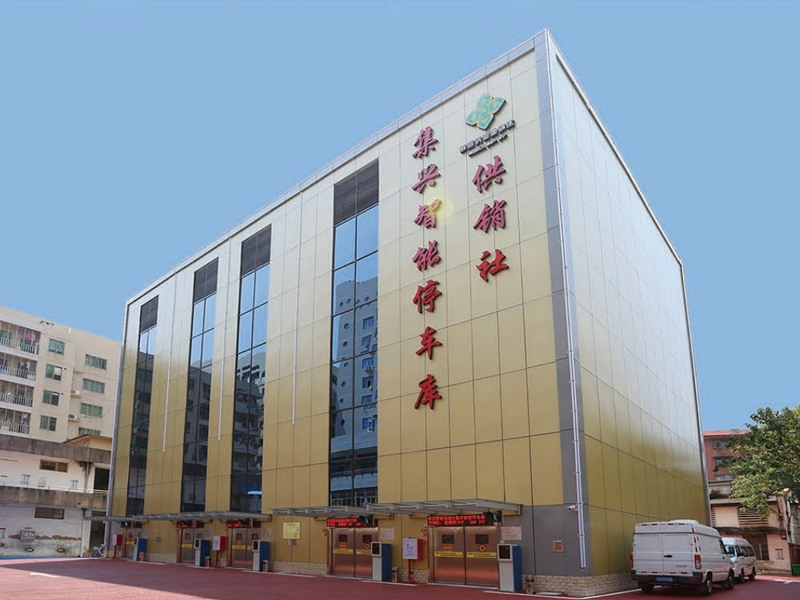

◆View can adopt structural design such as steel structure or concrete exterior wall, which can be integrated with the main building to enhance the architectural taste and value. Applicable to busy downtown areas and areas with high land value)
◆View can adopt structural design such as steel structure or concrete exterior wall, which can be integrated with the main building to enhance the architectural taste and value. Applicable to busy downtown areas and areas with high land value)

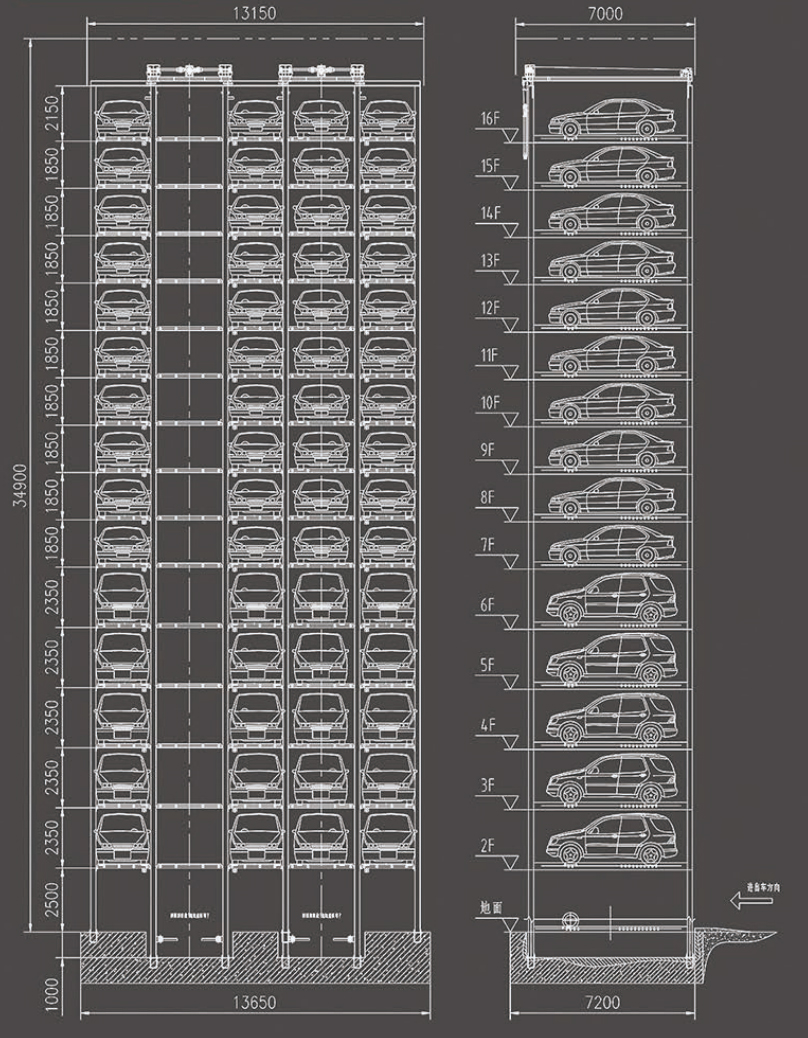

Design parameters
|
Number of floors |
2nd to 6th floors |
7th to 16nd floors |
|
Car size (L×W×H) |
SUV type car 5300mm×1950mm×2050mm | Ordinary car 5300mm×1950mm×1550mm |
|
Car weight |
<2350kg |
|
|

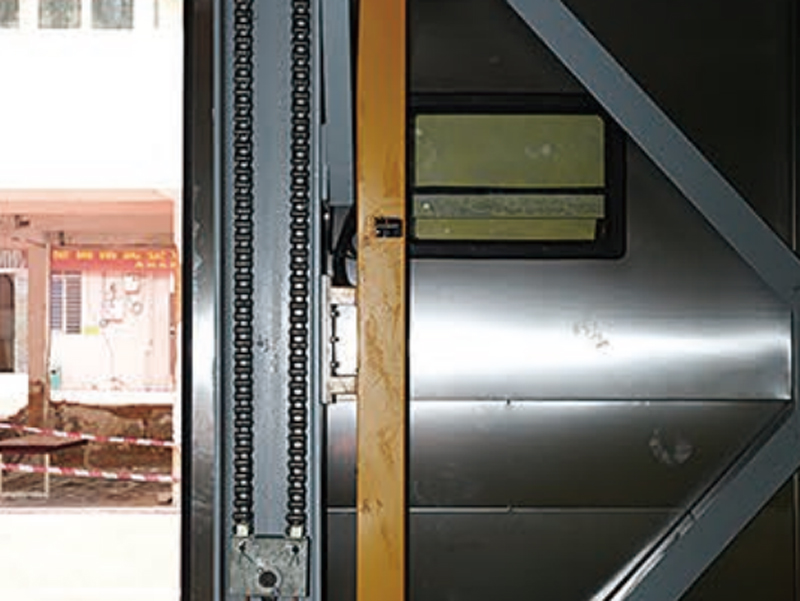

Drive mode |
Motor chain |
|
|
Motor |
Transverse: 0.2kw |
|
|
Lifting: 11 -30 kw |
||
|
Power supply |
Rotation: 2.2 kw |
|
|
Speed |
Three-phase five-wire 380V/50HZ |
|
|
Lifting speed: 30~120m/min Transverse speed: 12 m/min Rotation: 2.3 r/min |
||
|
Control |
Variable frequency PLC logic automatic control |
|
|
Operation |

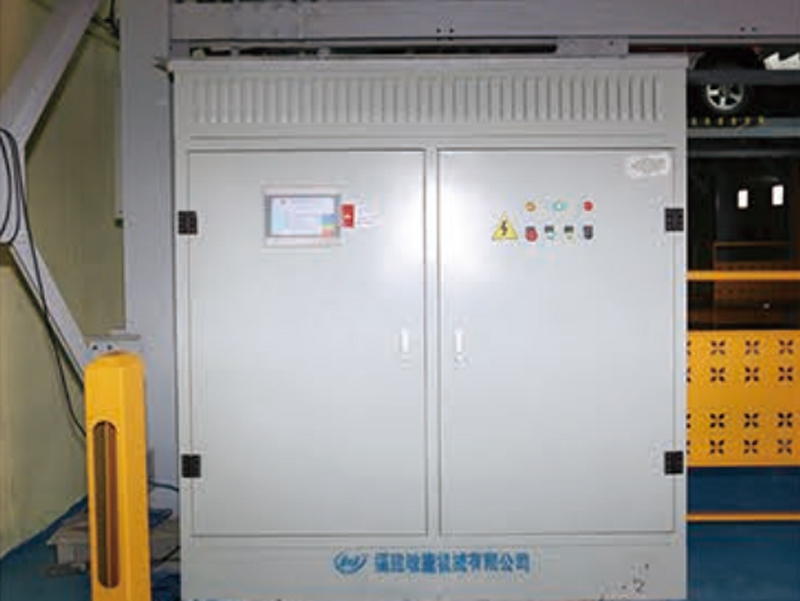

Touch screen, IC card operation |
|
|
Safety device |
●Emergency stop device | ●Transverse over-limit protection device |
| ●Up and down limit protection device | ●Up and down positioning switch | |
| ●Operation limit device | ●Current overload protection device | |
| ●Wheel stop bar | ●Anti-overlap automatic detection device | |
| ●Anti-fall device | ●Length, width and height detection | |
| ●Transverse positioning switch | ●Operation warning device | |
| ●Power-off brake device | ◎Automatic door anti-pinch device | |
