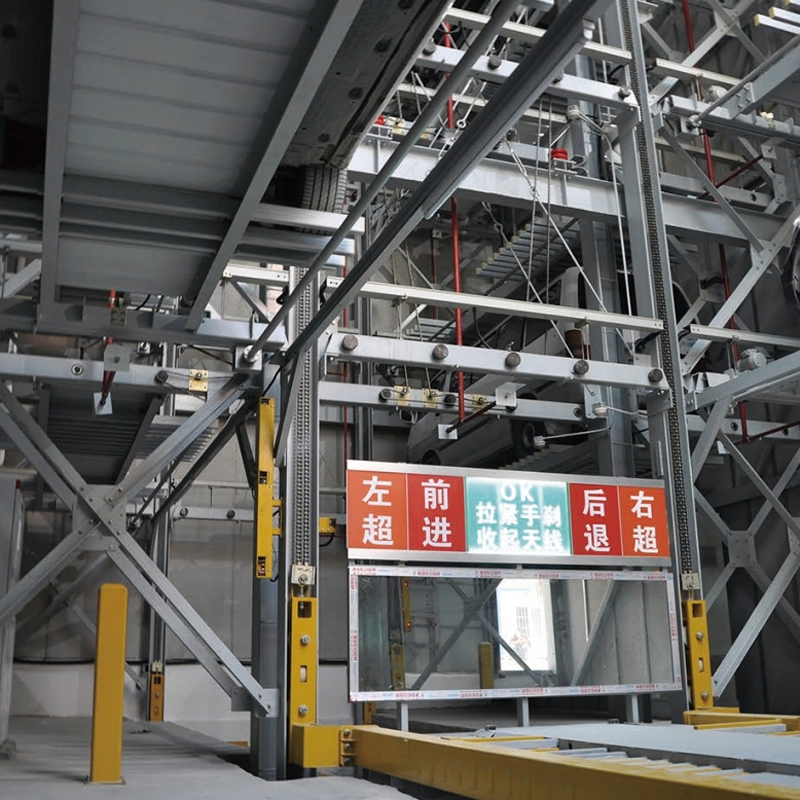

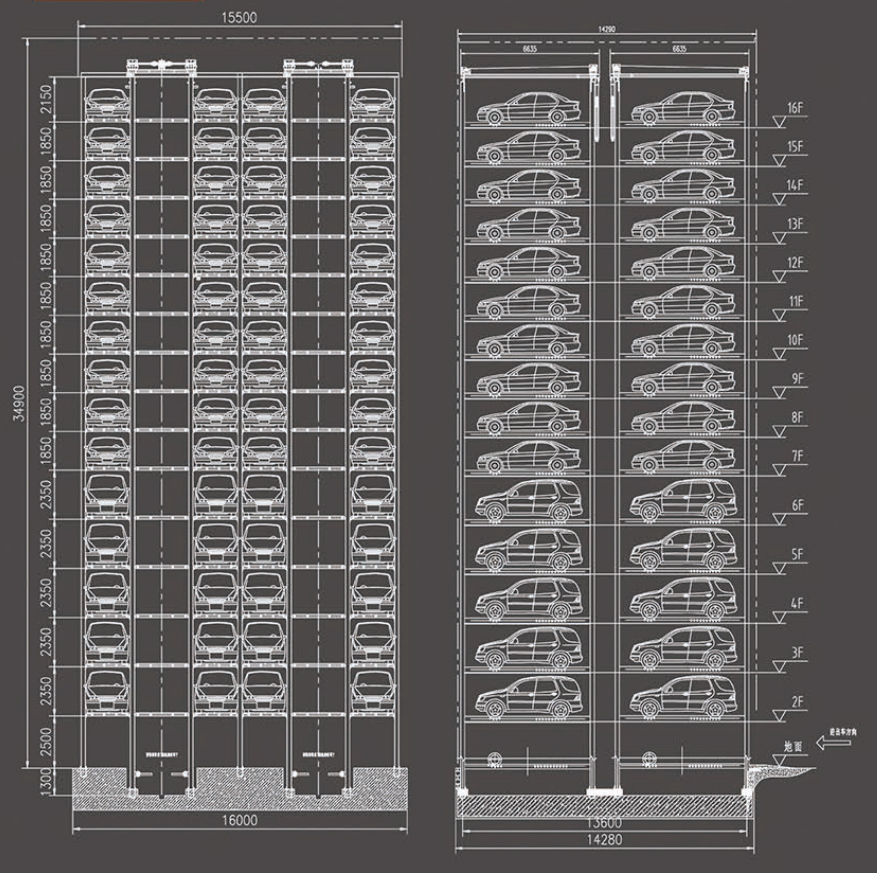

Through-Type Vertical Lifting Stereo Garage

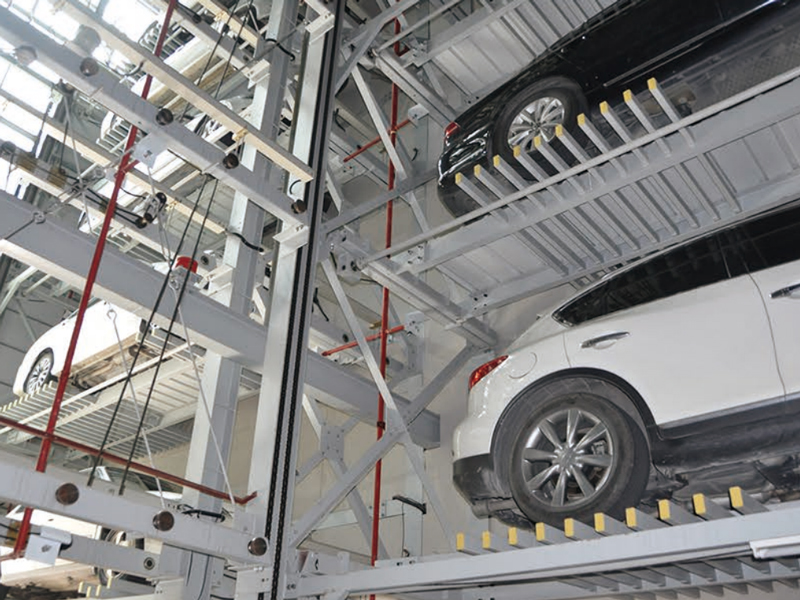

Technical features of the equipment
◆This type of garage is suitable for long and deep sites, and can greatly increase the number of garages under the existing site conditions, while reducing the area of the driving channel.
◆Small footprint, high performance, energy saving, low noise, high-speed intelligent access, small environmental impact;
◆Fully enclosed management, safe, anti-theft, providing the best protection for vehicles:
◆High-speed operation, fast entry and exit, front entry and exit;
◆Automatically identify large and small vehicles, and automatically assign vehicles to large and small parking spaces;
◆Adopt variable frequency speed regulation technology, fast operation speed, up to 90m/min to 120m/min, stable operation, high safety, vehicle retrieval time is 50S~90S, simple operation and convenient maintenance.
◆Simple operation, convenient maintenance\complete and reliable safety devices;

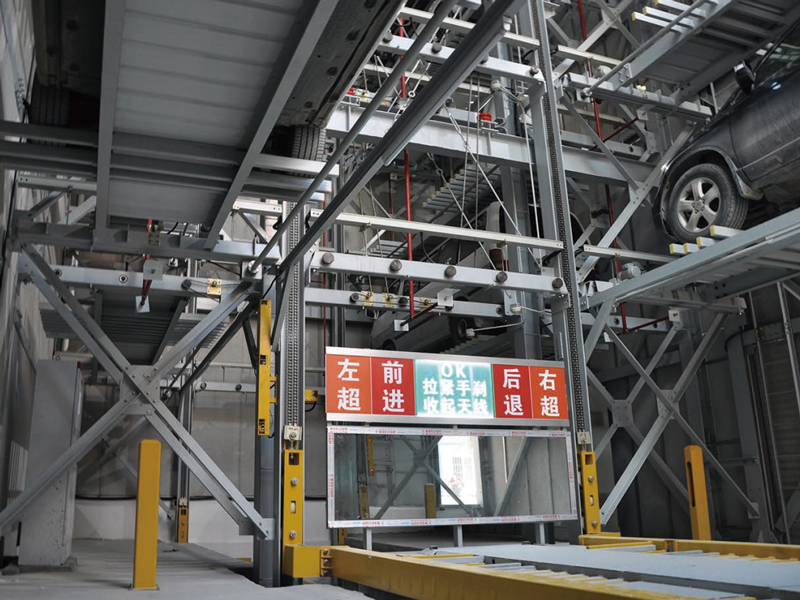

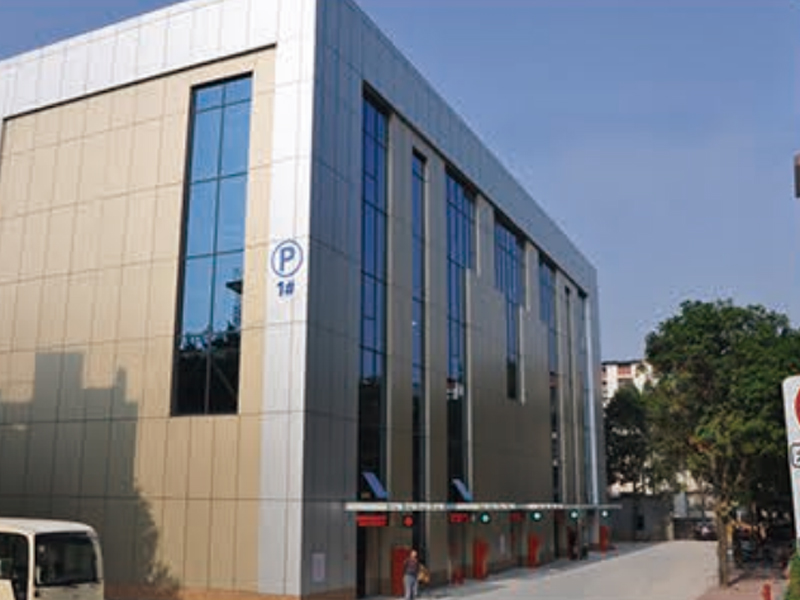

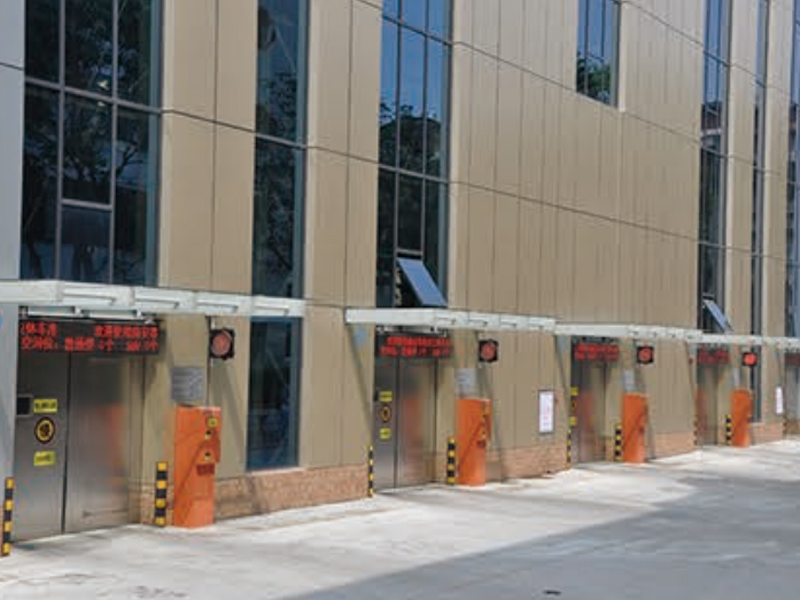

◆The view can adopt structural design such as steel structure or concrete exterior wall, which can be integrated with the main building to enhance the architectural taste and value. Suitable for prosperous downtown areas and areas with high land value.
Design parameters
|
Number of floors |
2nd to 6th floors |
7th to 16nd floors |
|
Car size (L×W×H) |
SUV type car 5300mm×1950mm×2050mm | Ordinary car 5300mm×1950mm×1550mm |
|
Car weight |
<2350kg |
|
|
Drive mode |
Motor chain |
|
|
Motor |
Lifting: 11-30 kw |
|
|
Rotation: 2.2 kw |
||
|
Power supply |
Transverse: 0.2 kw |
|
|
Speed |
Carrying trolley: 4 kw |
|
|
Three-phase five-wire 380V/50HZ Lifting speed: 30 ~120m/min Transverse speed: 12 m/min |
||
|
Control |
Rotation: 2.3 r/min |
|
|
Operation |
Carrying trolley speed: 28m/min Variable frequency PLC logic automatic control |
|
|
Safety device |
●Emergency stop device | ●Transverse over-limit protection device |
| ●Up and down limit protection device | ●Up and down positioning switch | |
| ●Operation limit device | ●Current overload protection device | |
| ●Wheel stop bar | ●Anti-overlap automatic detection device | |
| ●Anti-fall device | ●Length, width and height detection | |
| ●Transverse positioning switch | ●Operation warning device | |
| ●Power-off brake device | ●Automatic door anti-pinch device | |
