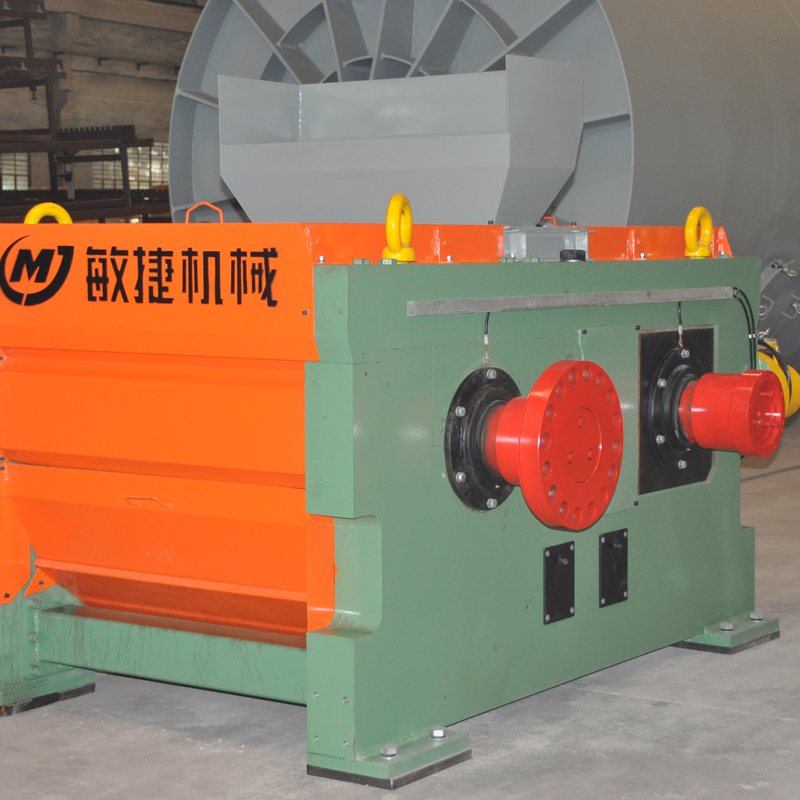

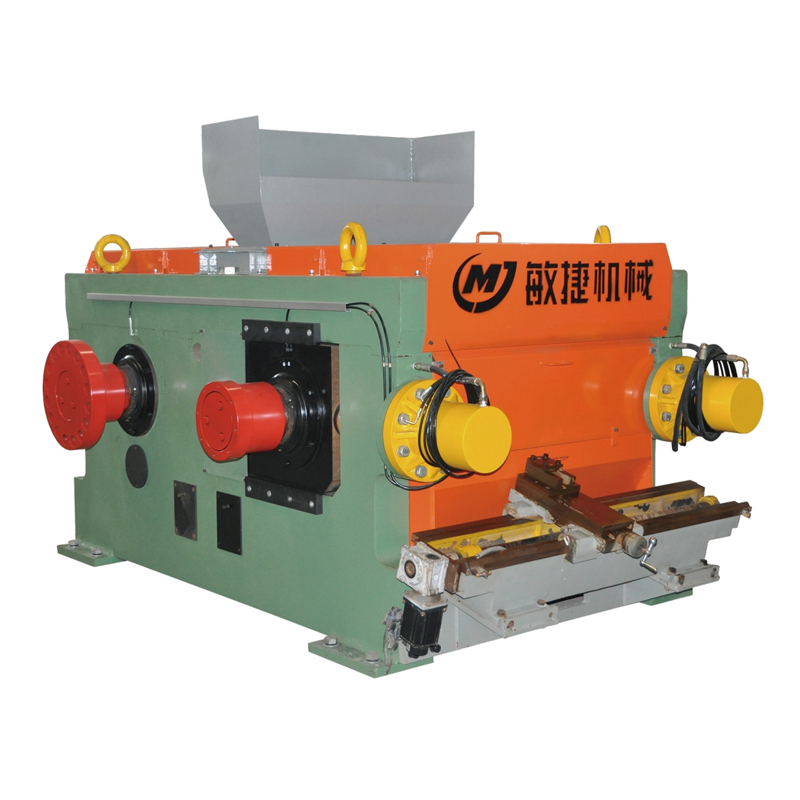

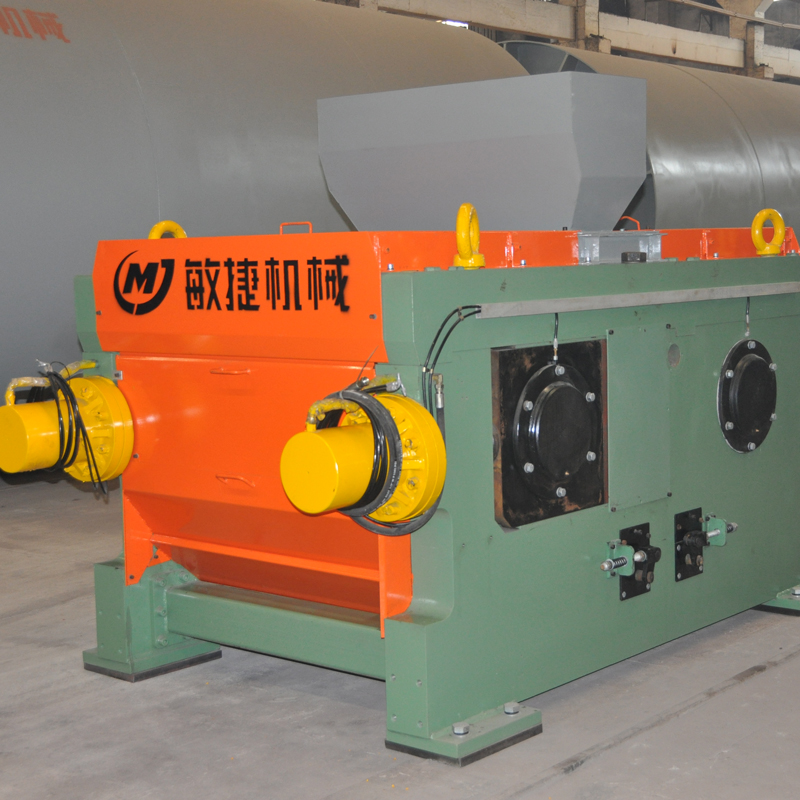

Roll Crusher for Mineral Processing

Product Introduction

Minjie Roll Crusher is designed for efficient, eco-friendly, and energy-saving mineral size reduction. It adopts advanced double-roll technology, ensuring uniform particle size and stable performance. Ideal for crushing brittle or medium-hard ores, the machine delivers high throughput with minimal energy consumption.

The compact design reduces installation space and lowers maintenance costs. With low noise and dust emissions, it aligns with modern environmental standards, making it suitable for green mining and sustainable production.

Minjie Roll Crusher is widely used in the processing of quartz, silica, feldspar, limestone, and other non-metallic minerals. Its precise control and adjustable gap system allow for consistent output size, improving downstream grinding efficiency and reducing energy waste.

Choose Minjie for reliable performance, enhanced productivity, and responsible environmental impact.

    Request for Quotation
    product details

    Product features

    1. Reasonable design, simple structure, small space, easy to operate;
    2. The roller ring replacement is simple and convenient, no need to remove the bearing when replacing the roller ring;
    3. Adopt high chromium molybdenum-vanadium alloy, the hardness can reach more than HRC60°, long service life, high crushing accuracy;
    4. Equipped with scraper device, so that the roller ring is not easy to stick material, improve the crushing efficiency;
    5. Online repair system, after the roller wear can be quickly repaired online, to ensure production efficiency.

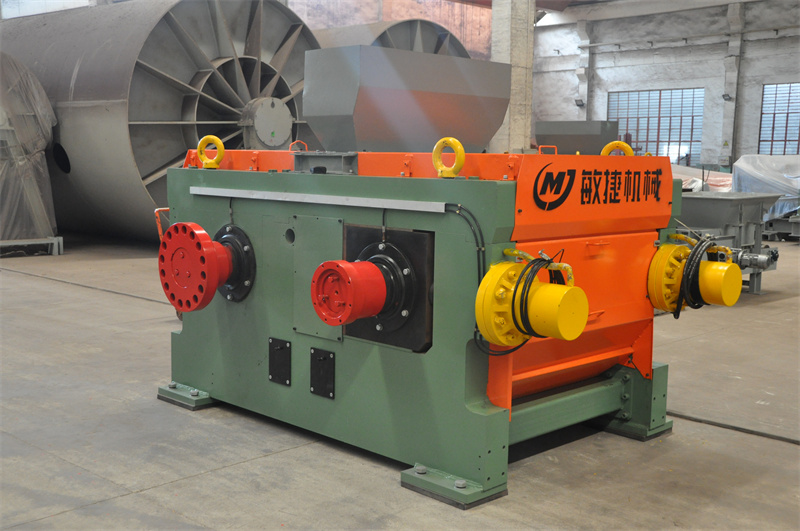

    • product description01

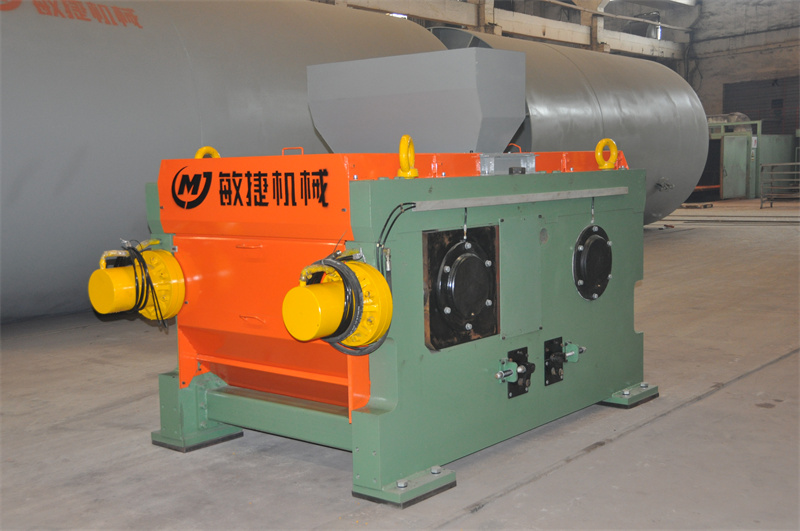

    • product description02

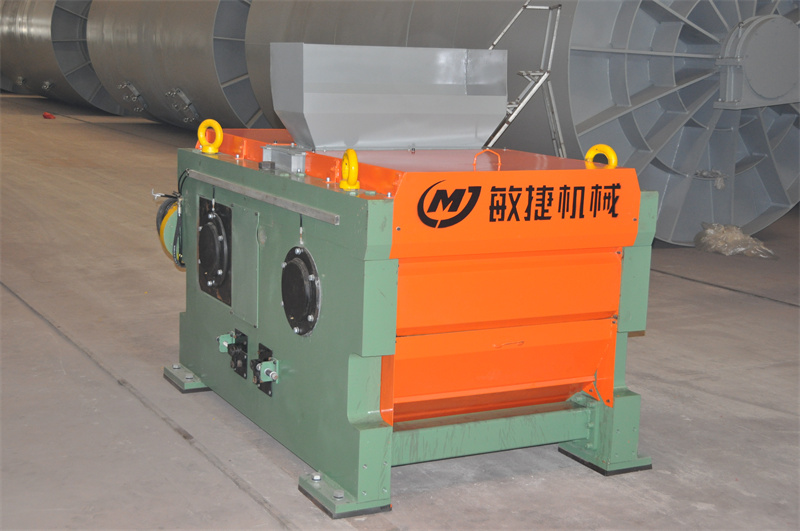

    • product description03

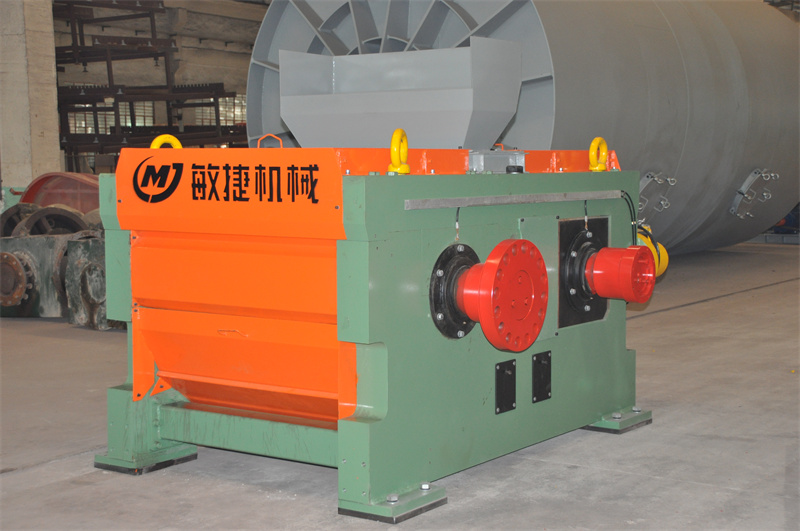

    • product description04

    Main technical parameters

    Mode 1000x580 1200x800
    m m Roller body diameter Ø1000 Ø1200
    mm Roller surface width 580 800
    Roller ring material High chromium molybdenum-vanadium alloy High chromium molybdenum-vanadium alloy
    Roller ring pressing device hydraulic pressure hydraulic pressure
    mm Maximum feeding particle size ≤20 ≤20
    mm Minimum discharge size ≤3 ≤3
    (t/h) yield 40～50 50～70
    k W Motor power 75 132
    Reducer ZLY315 ZLY355
    Starting mode Frequency conversion/soft startup Frequency conversion/soft startup
