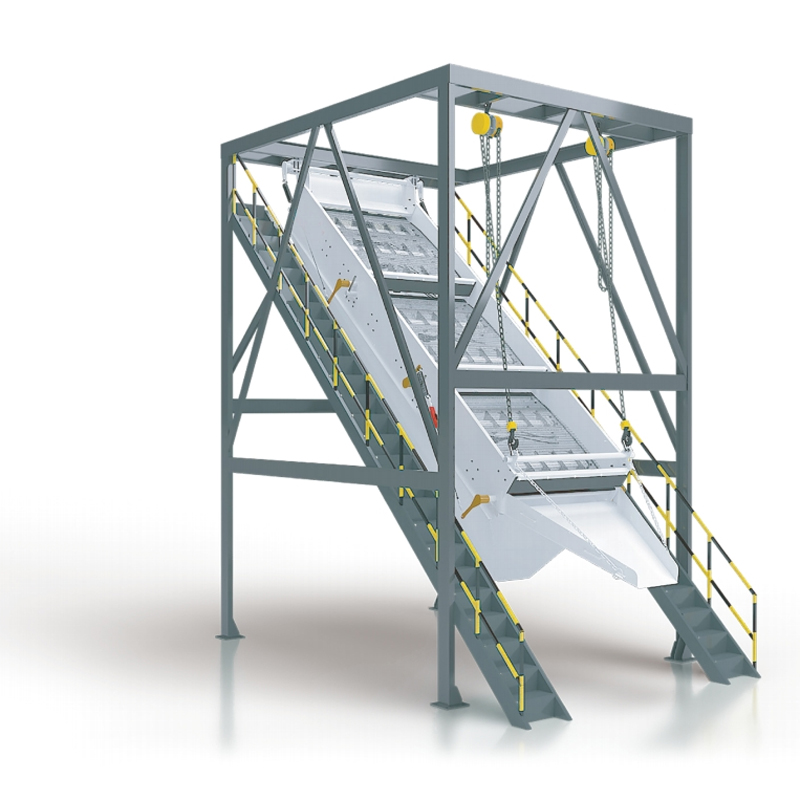

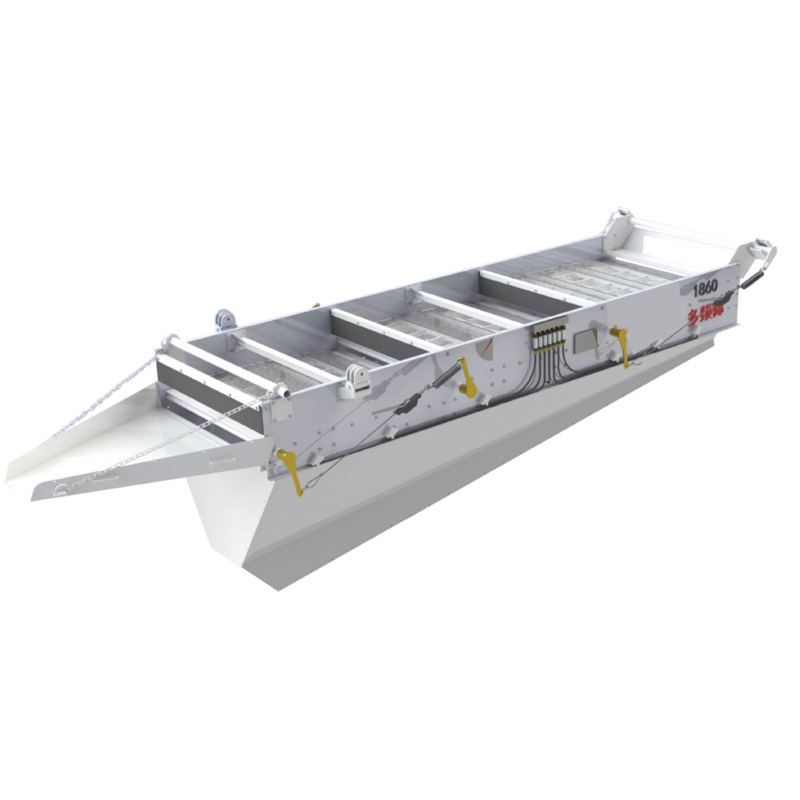

Multifrequency Screen For Glass & Ceramics Industry
Product features
1. The vibration source is strong, durable, adjustable, and more directly acts on the material;
2. Hook plate design, screen replacement is more simple and convenient;
3. Large processing capacity, the use of advanced screening principle, coarse material is bounced higher, fine material closer to the screen has more screening machines;
4. The screen box does not participate in vibration, effectively reducing dynamic load.
Main technical parameters
| Model | ( mm ) Screen width | ( mm ) Screen length | ( mm ) Feed particle size | (rpm) Vibration times |
| SYDP-1840-1 | 1800 | 4000 | 0-25 | 0-4200 |
| SYDP-1860-1 | 1800 | 6000 | 0-25 | 0-4200 |
| SYDP-1860-2 | 1800 | 6000 | 0-25 | 0-4200 |
| SYDP-2260-1 | 2200 | 6000 | 0-25 | 0-4200 |
| SYDP-2260-2 | 2200 | 6000 | 0-25 | 0-4200 |
