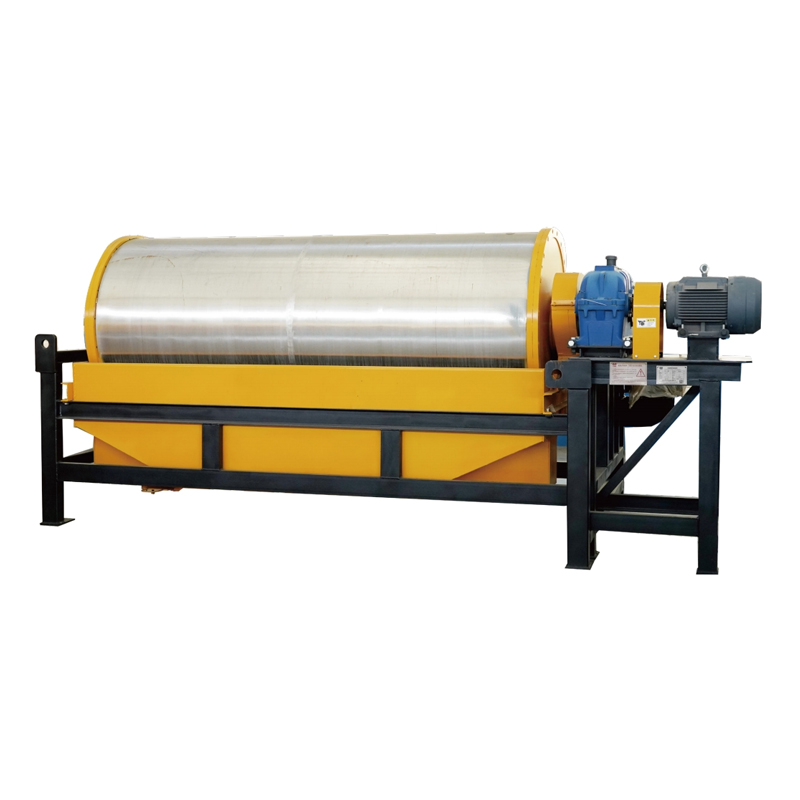

Magnetic Separator for Iron Removal in Non-metallic Minerals

Product Introduction

Minjie’s Magnetic Separator for Iron Removal in Non-metallic Minerals is engineered for precision and performance. Designed specifically to target iron impurities in materials like quartz, feldspar, kaolin, and silica, it helps ensure product purity in industries such as ceramics, glass, electronics, and construction materials.

This machine offers an eco-friendly solution for mineral processing. Its efficient magnetic separation system minimizes energy consumption while delivering stable, high-output performance. The separator uses powerful, high-gradient magnets to extract even the finest iron particles, reducing the need for secondary refining processes and maximizing raw material utilization.

Its fully enclosed structure and automatic control system reduce dust emissions and manual labor, promoting a cleaner, safer working environment. With fewer moving parts and wear-resistant components, the Minjie Magnetic Separator requires minimal maintenance, keeping operational costs low and uptime high.

Whether you’re improving product quality, reducing environmental impact, or cutting energy costs, Minjie delivers reliable separation performance that meets today’s industrial and ecological standards.

Choose Minjie — where sustainability meets separation efficiency.

    Request for Quotation
    product details

    Product features

    1. According to the selection process and the different particle size of the selection, there are two kinds of counter-current and semi-counter-current tanks to choose from. Computer optimization design, reasonable magnetic circuit, large magnetic penetration depth, cross or flip magnetic field arrangement, more conducive to the selection of magnetic objects;
    2. the overall structure is reliable and durable, low operating cost;
    3. there are a variety of magnetic field strength to choose from;
    4. double stainless steel shell, prolong the service life of the cylinder.

    Main technical parameters

    Model  mm Cylinder size cylinder surface magnetism induction strength Gs Processing capacity kW Main motor power kW Discharge hduction rol ealactricity Machine power r/min Cylinder speed kg Total weight
    t/h m/h
    CTB(N)-618G 600×1800 1600-7000 7-15 ~48 3 1.5 40 1500
    CTB(N)-712G 750x 1200 7-15 ~48 4 1.5 35 1670
    CTB(N)-718G 750x1800 10-22 ~72 4 1.5 35 2100
    CTB(N)-918G 900x1800 12-22 ~90 5.5 2.2 28 2900
    CTB(N)-1018G 1050x1800 20-35 ~120 5.5 2.2 22 4000
    CTB(N)-1021G 1050x2100 22-44 ~140 7.5 2.2 22 4500
    CTB(N)-1024G 1050x 2400 26-50 ~160 7.5 2.2 22 5000
    CTB(N)-1030G 1050x3000 32-62 ~200 11 2.2 22 6300
    CTB(N)-1224G 1200x2400 40-55 ~200 11 2.2 17 6900
    CTB(N)-1230G 1200x3000 50-70 ~260 11 2.2 17 8000
    CTB(N)-1240G 1200x4000 60-90 ~350 18.5 3 17 10000
    CTB(N)-1245G 1200x4500 70-100 ~400 22 4 17 12000
    CTB(N)-1530G 1500x3000 55-80 ~320 18.5 3 14 9700
    CTB(N)-1540G 1500x 4000 80-110 ~400 22 4 14 13000
