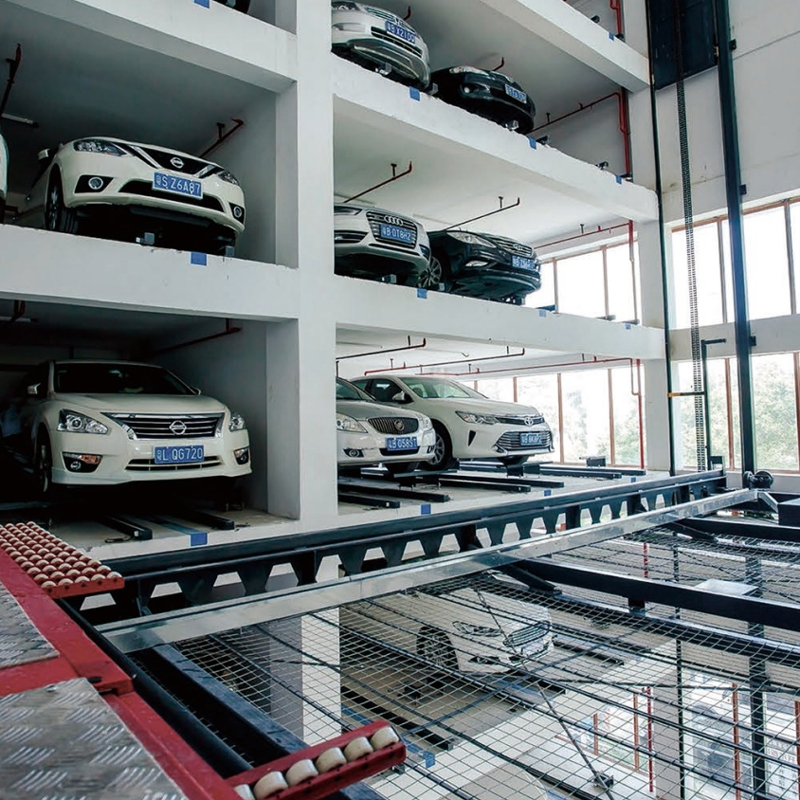

Large Car-Type Flat Mobile Stereo Garage

Working principle:
The large-car flat mobile three-dimensional parking garage is a fully automatic parking system. The system consists of a transporter, a main elevator, and equipment such as an entry and exit hall. When parking, the vehicle drives to the sensing device in front of the entrance. The car drives to the parking position according to the instruction screen and voice guidance. After confirming the parking, it enters the parking procedure. The transporter transfers the vehicle to the main elevator. The elevator and the transporter simultaneously complete the horizontal and vertical movement of the vehicle to the vacant parking space. The transporter transports the vehicle to the garage to complete the vehicle storage.

    Request for Quotation
    product details

    Technical features of the equipment

    ◆Combining the technical features of vertical lifting and plane movement, it can achieve rapid movement in the horizontal and vertical directions at the same time, greatly improving the efficiency of parking and retrieval, and occupying a small area.
    ◆The equipment cooperates perfectly, coordinates movement, and saves parking and retrieval time. The storage and retrieval time of a single car is 60~120 seconds, and the continuous storage and retrieval time is no more than 90 seconds per car on average. It has a high degree of automation and high operating efficiency.
    ◆Multiple safety protection measures to ensure the safety of people and vehicles
    ◆When parking or picking up a car, the vehicle moves forward without reversing or turning around, which is convenient for the owner.
    ◆Fully enclosed construction to ensure the safety and cleanliness of the vehicle
    ◆Fully automatic operation, easy operation and control, low operation and maintenance costs of the garage.
    ◆High space utilization and wide application range. The number of garage floors can range from 2 to 12, and the location can be set above ground, underground or semi-underground.

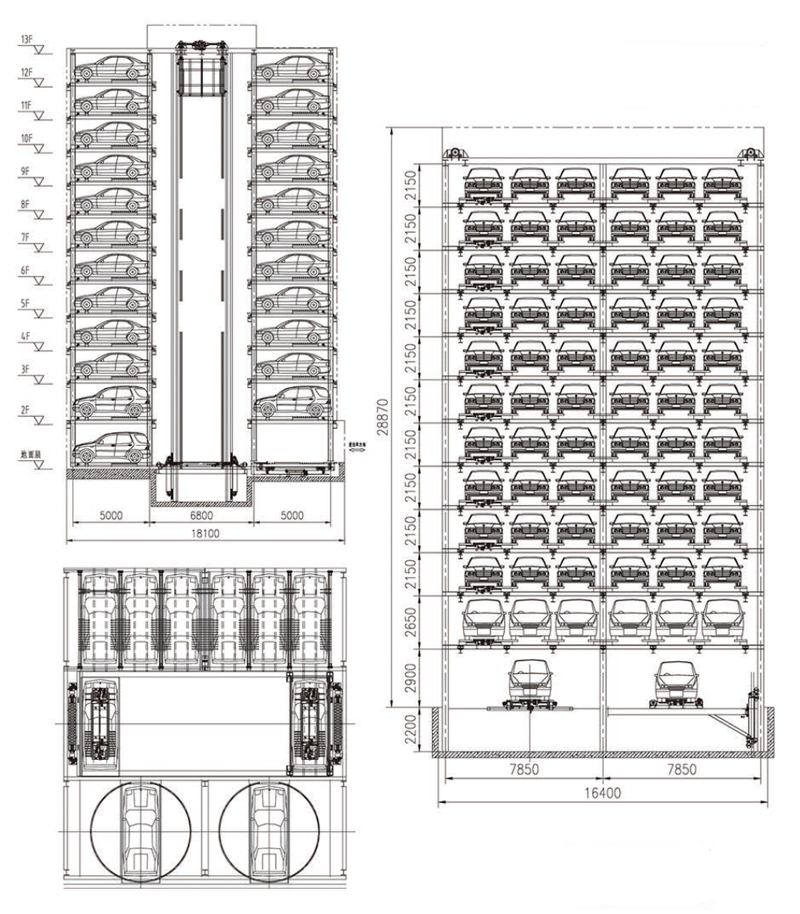

    product-description1

    Design parameters

    Number of floors

    2nd to 6th floors

    7th to 32nd floors

    Car size (L×W×H)

    		 SUV type car 5300mm×1950mm×2050mm Ordinary car 5300mm×1950mm×1550mm

    Car weight

    ≤2350kg

    Drive mode

    Motor chain

    Motor

    Lifting: 11-30 kw Transverse movement: 0.2 kw

    Rotation: 2.2 kw

    Power

    Three-phase five-wire 380V/50HZ

    Speed

    Lifting speed: 30~120m/min Transverse movement speed: 12 m/min

    Rotation: 2.3 r/min

    Control

    Variable frequency PLC logic automatic control

    Operation

    Touch screen, IC card operation

    Safety Devices

    		 ●Emergency stop device ●Transverse over-limit protection device
    ●Up and down limit protection device ●Up and down positioning switch
    ●Operation limit device ●Current overload protection device
    ●Wheel stop bar ●Anti-overlap automatic detection device
    ●Anti-fall device ●Length, width and height detection
    ●Transverse positioning switch ●Operation warning device
    ●Power-off brake device ●Automatic door anti-pinch device

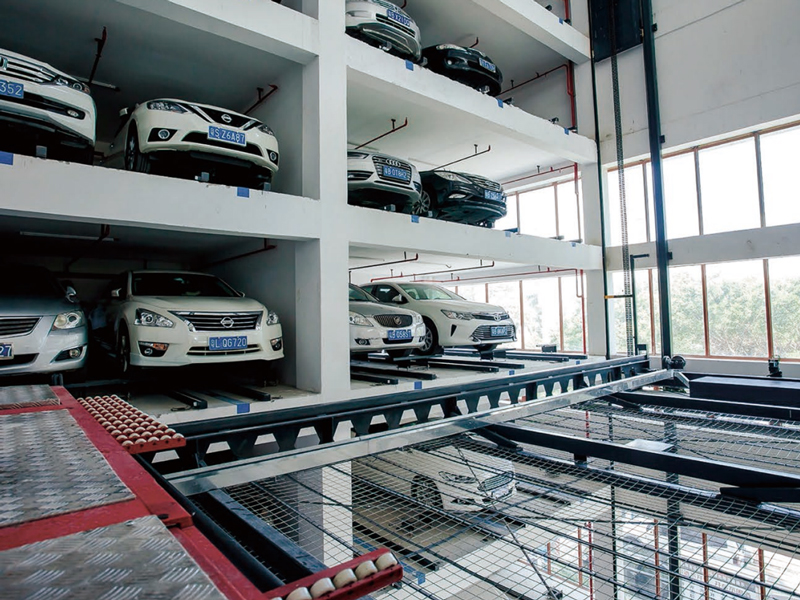

    • product-description2

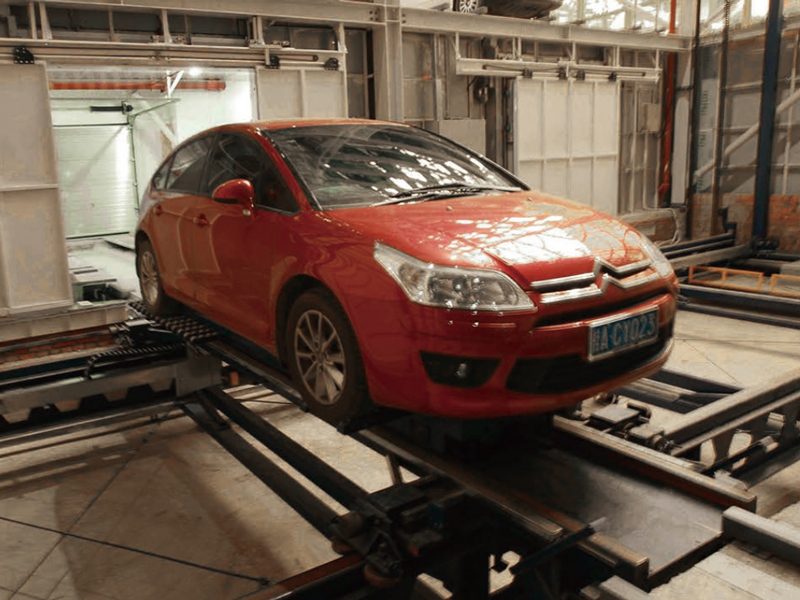

    • product-description3

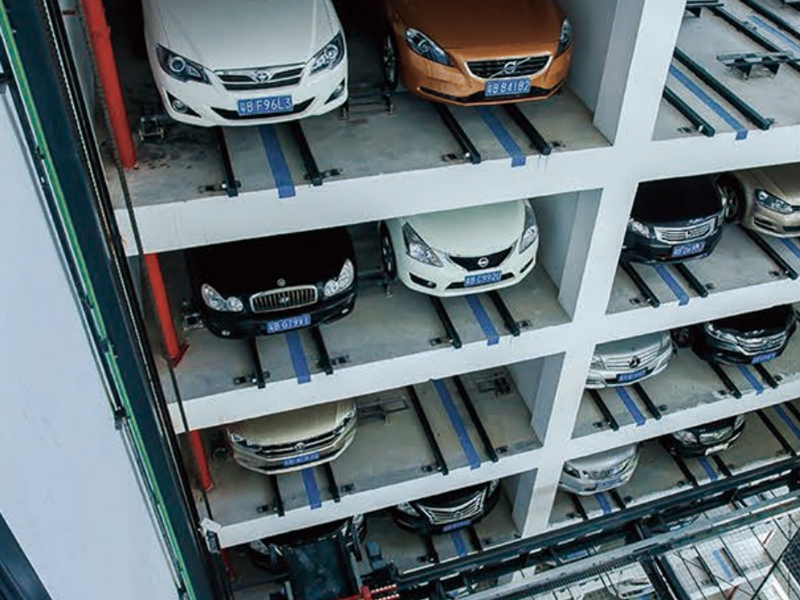

    • product-description4
