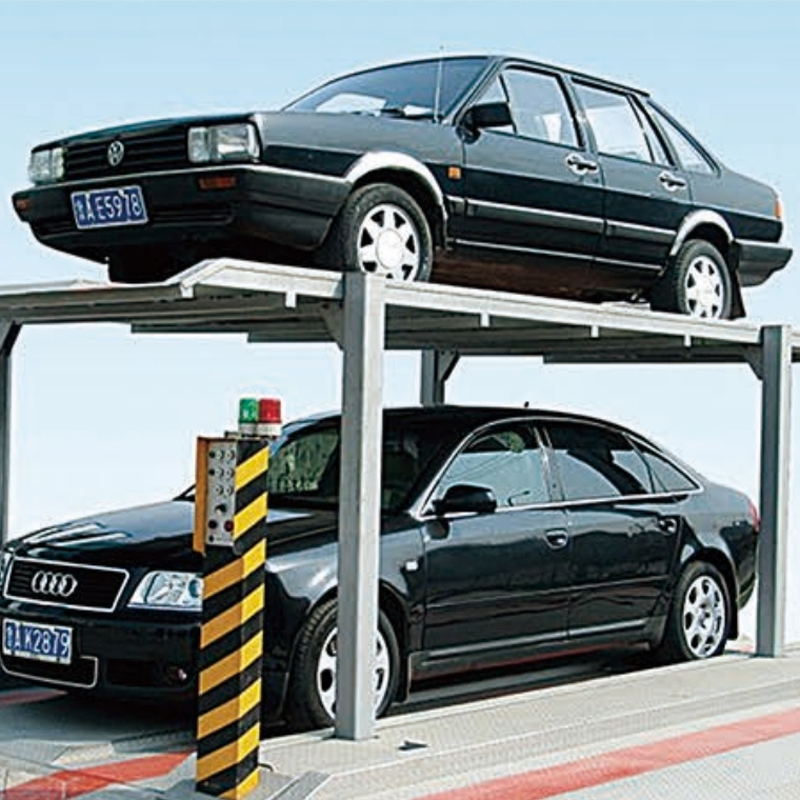

Foundation PIT Type Simple Lifting Stereo Garage
Equipment features
Save ground and make full use of underground space;
Can realize multiple groups of parallel arrangement to increase the number of parking spaces: The middle and lower parking spaces have dustproof, rainproof, anti-theft and other functions: The equipment does not affect the lighting of the building, is simple, reliable and easy to operate.
Design parameters
|
Model |

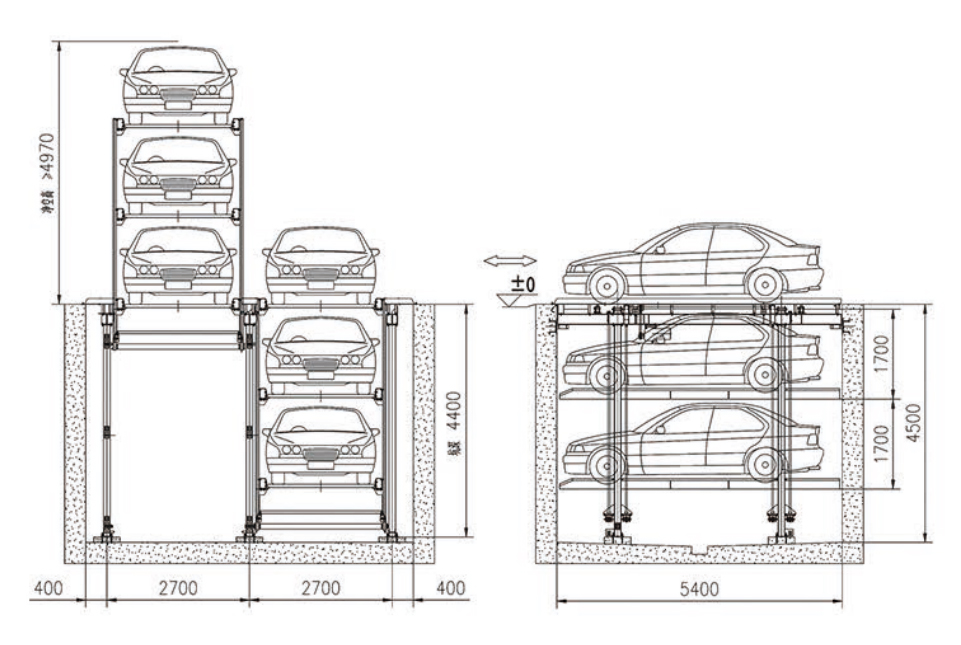

Three-layer foundation pit |
|
|
Vehicle Dimensions (L×W×H) |
5000mm×1850mm×1550mm |
|
|
Vehicle Capacity Weight |
≤2350kg |
|
|
Drive Method |
Motor chain drive |
|
|
Motor |
Lifting: 3.7kw |
|
|
Power Supply |
Three-phase five-wire 380V/50HZ |
|
|
Speed |
Lifting: 2m/min |
|
|
Control |
Logical automatic control |
|
|
Operation |
Key and IC card operation |
|
|
Safety Device |
●Emergency stop device | ● Anti-fall device |
| ●Overcurrent protection | ● Upper and lower limit protection device | |
| ●Entry photoelectric detection device | ● Upper and lower positioning switch | |
| ●Wheel barrier | ● Power failure braking device | |
| ●Overlength detection | ● Safety interlock device | |
